606602

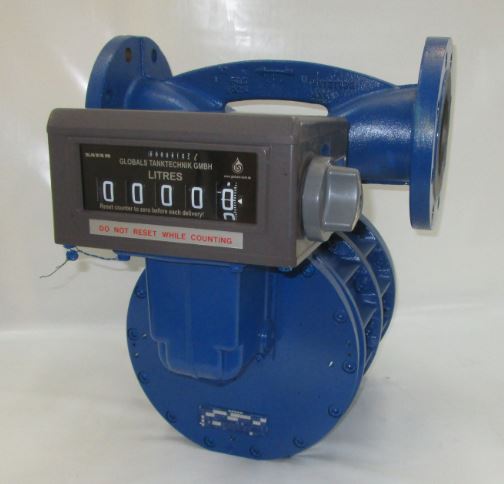

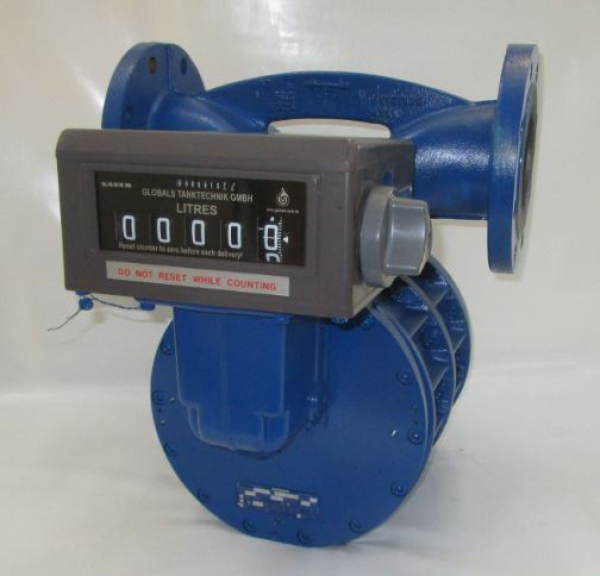

ZC 17-80/150 H ANSI RST R/VR7887 RL SATAM vane meter, DN100 stepless adjustment
606602

ZC 17-80/150 H ANSI RST R/VR7887 RL SATAM vane meter, DN100 stepless adjustment

Product No.:
606602
1 Week 1 Week (abroad may vary)
You only see prices with a customer account.

Add to wish list
Ask about product
Description
ZC 17-80/150 H ANSI RST R/VR7887 RL
SATAM vane meter, DN100
stepless adjustment gear AB21
VR roller counter R/VR7887
Display LITRES
Measuring range: 250-2500 l/min (MID)
Cyclic volume: 4.54 liters
smallest delivery quantity: 1000 liters (MID)
Temp. range: -20 /+90°C (calibrated range -10 /+50°C)
Flow direction: from right to left
Connection: both. 4"ANSI 150lbs flange, steel
Installation length: 432 mm (short pipe connection piece)
Nominal pressure: 10 bar
Housing: nodular iron
Lid: Steel, Kanigen
Rotor: aluminum
Slider: carbon
Ball bearing: stainless steel
Seals: FKM
Medium: mineral oils, free of solids
