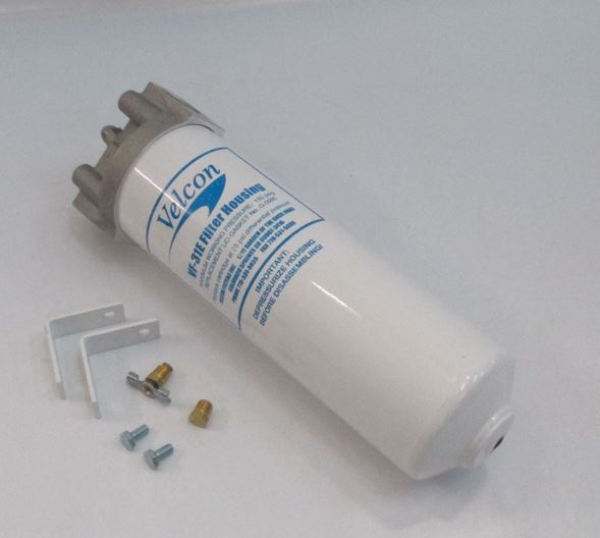

VF-31E Filterhousing for filter cartridges
FEATURES
• Removal of free and emulsified water to less than 5 ppm
• Particulate removal down to 1/2 micrometer
• Protection against sudden water inrush ("slugs")
• Pressure increase signals cartridge change
• Compatible with existing filter housings
SPECIFICATIONS
Filter Housing VF-31E
• Recommended maximum flow rate: see table below
• Maximum operating pressure: 150 psi
• Material: Cast aluminum head , carbon steel bowl with
epoxy-coated interior and exterior
• Inlet/Outlet connection: 1" NPT
• Inlet/Outlet face-to-face distance: 4 inches
• Mounting holes in head: four 1/4-20 NC
• Seal: Buna-N gasket
• Height: 13.50 inches without petcock, 14.50 inches with petcock
• Weight: 3 lbs., 15 oz.
• Shipping weight: 4 lbs., 15 oz.
• Hardware included:
- 1 x Buna-N lid gasket
- Mounting brackets
- 1 x plug (for fuel and oil applications)
- 1 x 1/8" petcock drain (for air, gas and aviation fuel applications)
