606636
PBVG 65/ 65 D FL90/ 2X2 FPM Pn. 90° straight-way valve, cast iron, balanced, hy
606636

PBVG 65/ 65 D FL90/ 2X2 FPM Pn. 90° straight-way valve, cast iron, balanced, hy

Product No.:
606636
1 Week 1 Week (abroad may vary)
You only see prices with a customer account.

Add to wish list
Ask about product
Description

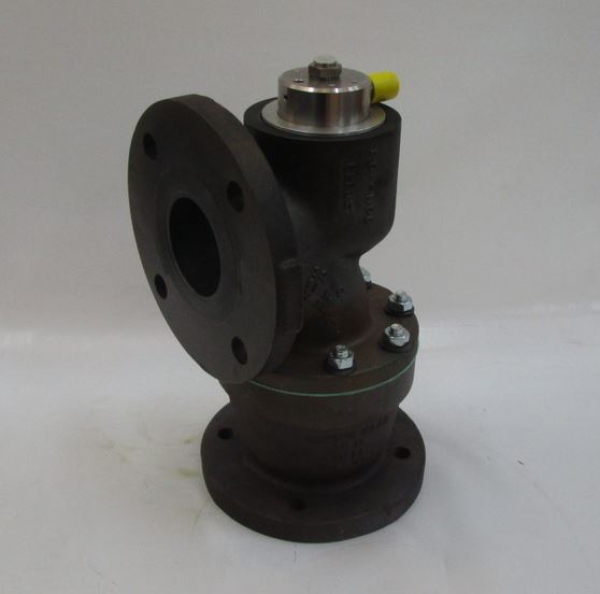

PBVG 65/ 65 D FL90/ 2X2 FPM

Pn. 90° straight-way valve, cast iron, balanced, hydraulically damped, for
thin and viscous mineral oil products and other non-corrosive and / or
solids-free media.
(Also available with 1 or 15 bar pressure relief valve)

Case material: GS-45/GGG 40.3
Nominal width: DN 65
Nominal pressure: PN 16 bar
Operating pressure PB 10 bar
Operating temperature: -20°C to +100°C
Pn. pressure: 3 to 8 bar
Connection flanges according to DIN EN 1514-1
