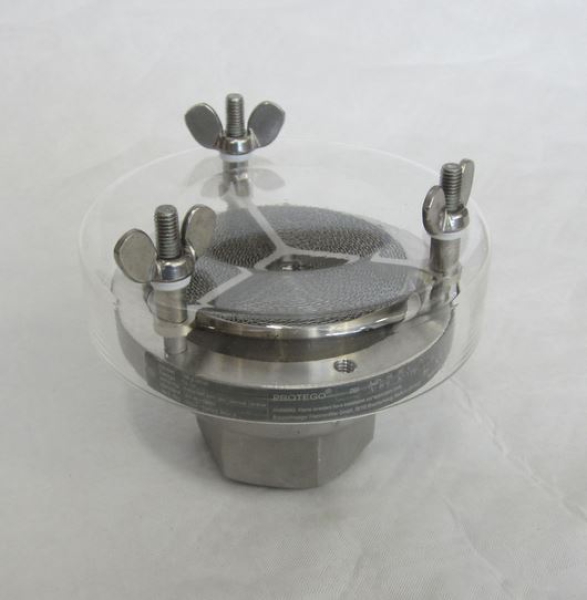

Extraction and ventilation hood PROTEGO® EB-Z-1 1/4-IIA
605401

Extraction and ventilation hood PROTEGO® EB-Z-1 1/4-IIA

Product No.:
605401
1 Week 1 Week (abroad may vary)
You only see prices with a customer account.

Add to wish list
Ask about product
Description
Extraction and ventilation hood PROTEGO® EB-Z-1 1/4-IIA

Deflagrations- and Dauerbrandsicher

Protection system with type examination certificate
Internal pipe threads: G 1 1 / 4¨
Housing nominal pressure: PN 1
Housing assembly:
- Housing: 1.4408
- Ribbed Cross: 316 SS / 1.3304
- Cover: acrylic glass
- Bolts / nuts: A4
- FLAME FILTER: 316 SS / 1.4404
- FLAME FILTER gap width: 0.7 mm
Piece weight: approx. 1.1 kg
Baumusterprüfbesch. no. : IBExU13ATEX2031X
Explosion group: IIA
Standard gap width:> 0.90 mm
Max.zul. Operating temperature: 60 ° C
