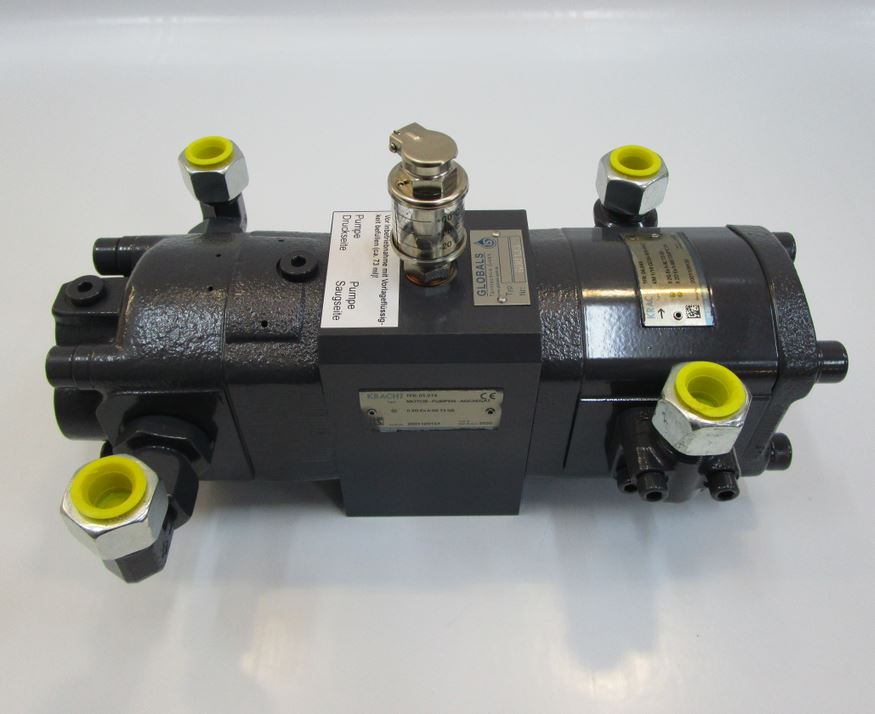

Drain Pump Unit EPA-HY24

You only see prices with a customer account.

Description

for residual / sump drainage, hydraulically driven

Flow capacity: depending on the speed up to 24 l/min

Connections: 4x compression type fitting for pipe AD15

Speed: nmin = 600 rpm; nmax = 1500 rpm

Inlet pressure max. 75 bar (hydraulic)

Output pressure max. 25 bar (product)

IMPORTANT NOTE:

Reverse-side pressure max. 2 bar (short term up to 5 bar) allowed!

Note: if the throttling of the hydraulic flow rate is required, this must occur before the motor -

Sealing liquid 50-100mm ² / s capacity about 73 ml

Temperature range: -20 to +40 ° C

ATEX II 2G T3 IIA
