Detonation safety - for stable detonations PROTEGO® DR / ES-50-IIA P1,2 (DIN)
604654

Detonation safety - for stable detonations PROTEGO® DR / ES-50-IIA P1,2 (DIN)

Product No.:
604654
1 Week 1 Week (abroad may vary)
You only see prices with a customer account.

Add to wish list
Ask about product
Description

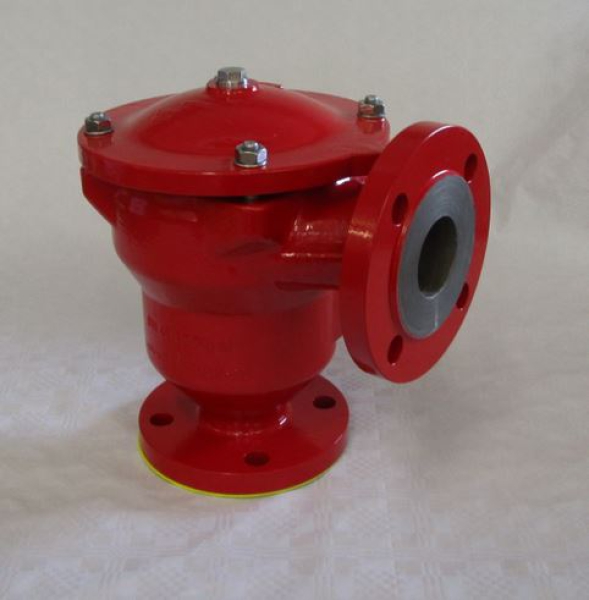

Detonation arrester - for stable detonations
PROTEGO® DR / ES-50-IIA P1,2
Protection system
Type Examination Certificate
by Journal: DR_ES_25_bis_200_KA_4_D.pdf
Flange: DN 50
drilled according to DIN EN 1092-1, PN 16
form B1
housing assembly
Housing: 1.0619
Shock absorber: 1.0619
O-ring: FPM
Screws / nuts: A2
PROTEGO® flame arrester
FLAMEFILTER® cage: 1.4408
FLAMEFILTER® set - 3x: 1.4571
FLAMEFILTER® gap width: 0.9 mm
Liner: 1.4571
Bolt / nut: A4
Baumusterprüfbesch. No .: IBExU11ATEX2007X
Explosion group: IIA
MESG:> 0.90 mm
.. Maximum permissible operating temperature: 60 ° C
.. Max working pressure: 1.2 bar abs.
