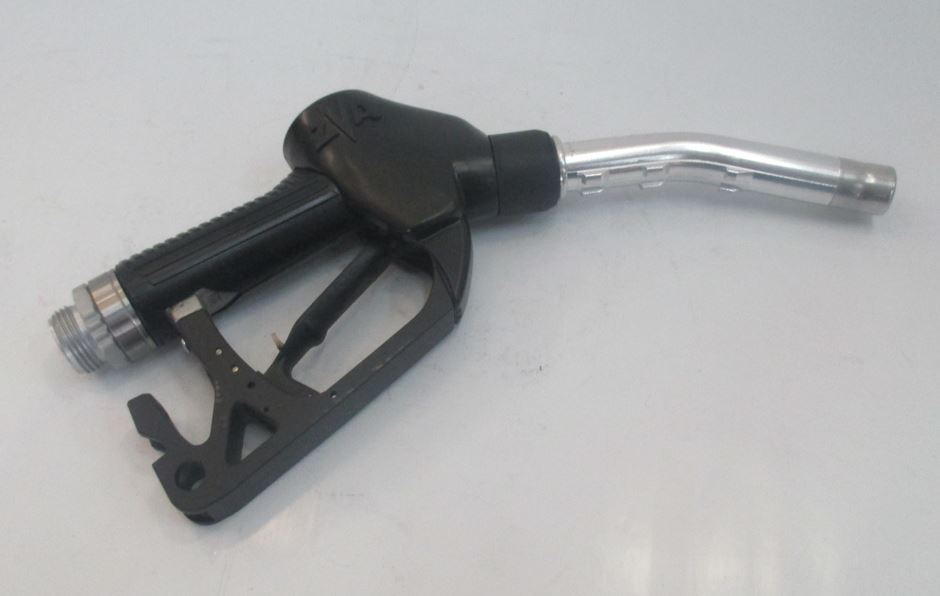

Nozzle - Automatic - ZVA2.8 .0 EK044 black - EK043 black
Nozzle Type:
ZVA Slimline 2 for Gas Stations
Automatic Nozzle
Maximum output: 80 l/min.
Suitable for gasoline (also with ethanol blends up to E85), diesel, heating oil, and biodiesel.
Not suitable for viscous oils.
Certificate: Complies with EN 13012 and applicable safety and calibration regulations.
ATEX (Ex II 1G) Certificate No.
TPS 19 ATEX 103415 0002 U.
TÜV Approval P-TÜ7-01930.
Housing
ZVA Slimline 2 (Standard)
Standard
Bracket
EG 281.8
Bracket No. 8
Connection
Swivel Joint
Smooth-action swivel joint.
Swivel joint
EA 075.0
G 1" AG
Outlet pipe
ER 042.1
Standard outlet pipe
OD 25 mm, for diesel/biodiesel.
Retaining catch
With retaining catch plug
Standard
With retaining function.
Standard
Temperature range -20°C to +55°C
With seals and membrane for use in temperate climates down to -20°C.
Protective cover
EK 044 black
Protective cover black
Plate -
Sorting spout / Splash guard
EK 043 black
Sorting spout black
Sieve
EK 172
Standard sieve
Sieve 400 µm (40 mesh), white.
