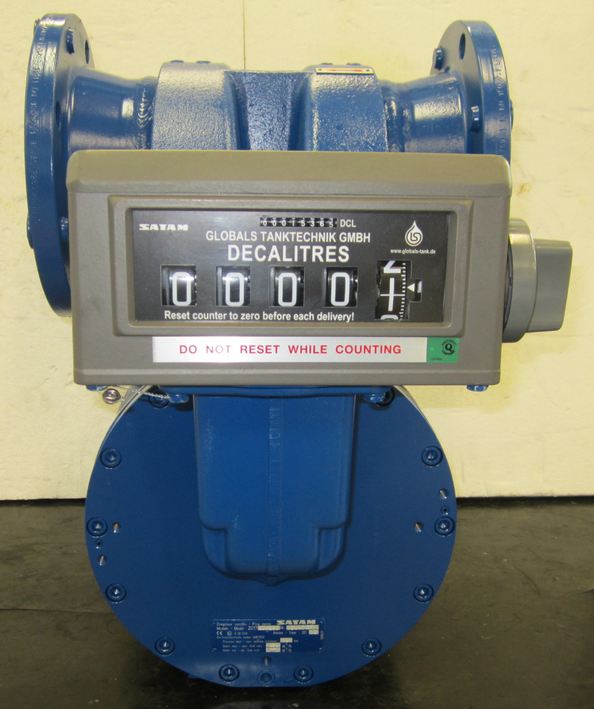

SATAM Meter ZC 17-80/250 H ANSI RST kurz R/VR7887 RL
Rotary Vane PD Meter, 6"
stepless Adjuster-Unit AB21
VR Register R/VR7887
Indication: DECALITRES
Flowrange: 416-4160 l/min (MID)
416-4160 l/min (EEC Approval)
300-4000 l/min (intrastate)
(W&M range: 1:10)
Cyclic volume: 6,82 Liter
minimum delivery quantity: 1000 liters (MID) 1000 liters (EEC Approval) 500 liter (intrastate)
Temperature range: -40/+90°C (W&M -10/+50°C)
Flow direction: from right to left
Connection: both sides 6"ANSI 150lbs, Flange, Steel
Fitting length: 400 mm (short Manifold)
Nominal pressure: 10 bar
Body: Ductile Iron
Covers: Steel, kanigen
Rotor: Aluminium
Blades: Carbon
Bearings: Stainless Steel
Seals: FKM
Fluid: Mineral Oils, free of solids
