Zapfpistole G457-403
Nozzle G457-403

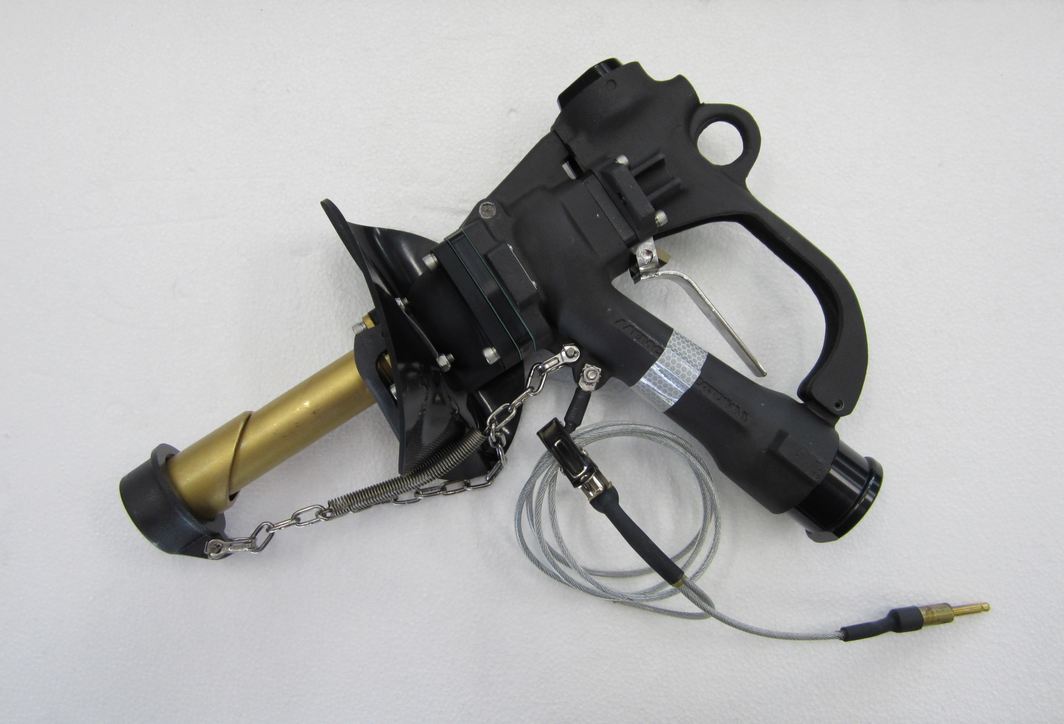

Helicopter Refuelling Nozzle Hot
Type G0457-403
performed with:
Dispensing tube, straight spout, splash and dust cap included
Ground cable with clamp and connector
100mesh filter
Low-temperature seals, -37 ° C
Operating pressure max. 110 PSI (7.6 bar)
For medium: F34 (JP8) AVTUR / FSII
F35 (Jet A1) AVTUR fuel
F44 (JP5) AVCAT / FSII fuel
F37 (JP-8 +100 fuel)
Temperature range: -37 ° C to +52 ° C
Weight: 4.0 kg
Aluminum housing, black anodized
Thread connection: G 1 1 / 2 ", thread depth 23 mm
Inlet pressure of max. 110 psi (7.6 bar) and flow rates
from 10 usgpm (38 l/min) to 70 usgpm (265 l/min).
