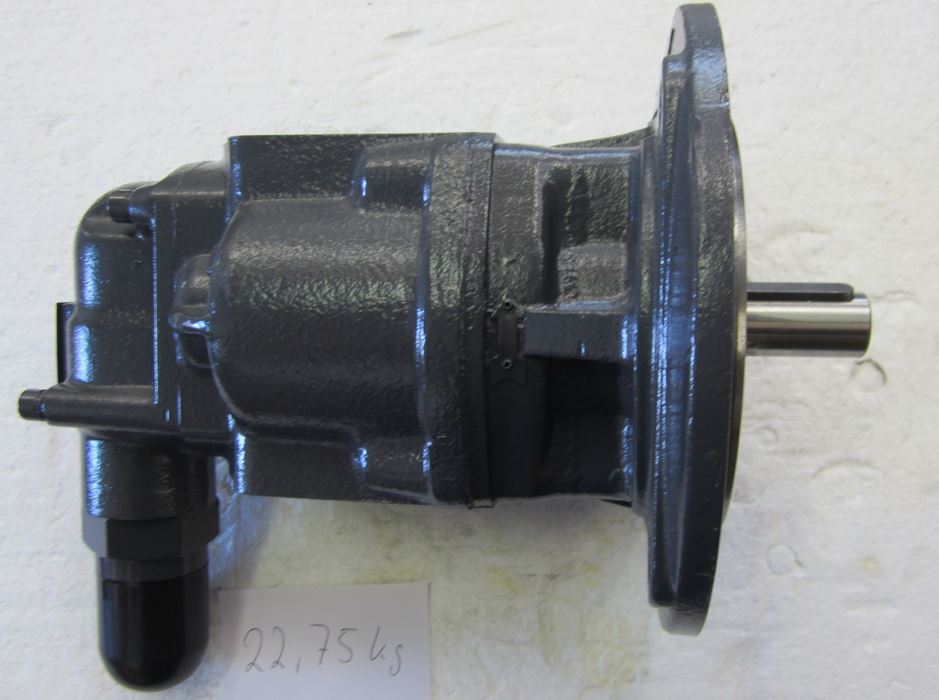

Gear-Pumpe KF 5/200 H10B P00 0DP2 + DKF 5 D 04
Materials
Housing: Cast iron EN- GJL 250
Integrated valve: Cast Iron EN- GJL 250
Flange: Cast Iron EN- GJL 250
Gears : Hardened Steel,
O-ring : FKM
Shaft seal: Radial shaft seal FKM
Bearing: P10 multilayer plain bearings
Product Data
Geometric delivery volume: 204 cc / rev
Direction of rotation: right ( viewed from shaft end )
Mounting : Flange KF 5 / ...
Pump support: No
Pipe connection: Flange KF 5/... - DN 63
Shaft : ø 28mm cylindrical
Integrated valve : DKF 04 - valve , 2 .. 4 bar
Specific Data
Operating pressure ( Suction side ) : -0.4 ... +1 bar
max. Operating pressure (Outlet) : 25 bar (depending on viscosity , speed and drive power
Fluid operating temperature : -10 ° C. .. +150 ° C
Ambient temperature: -20 ° C. .. +60 ° C
Minimum viscosity : 1.2 mm ² / s ( max. 12 bar ; lubricity WSD > = 520µm )
Maximum viscosity : 12 mm ² / s (maximum operating pressure) depending on suction side , speed and drive power
Speed range: 200 .. 2000 rpm (depending on pressure , viscosity and engine power)
ATEX category : product design does not meet the ATEX Directives
with
Connection Flange Z5/300/196-K - KF 5
with
Coupling RA 42-Z50/28-Z50/38
