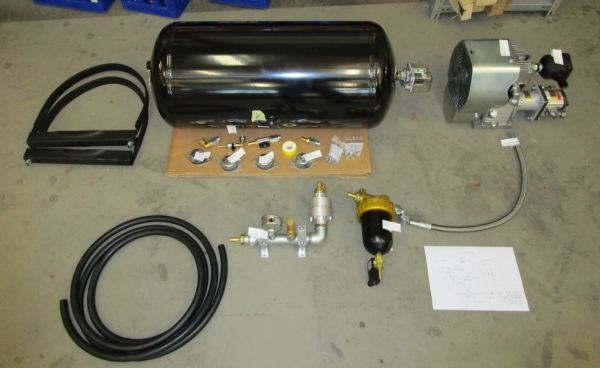

Compressor system K1-250 - Hydraulic drive
consisting of:
1 x
K1-250, 10 bar
Suction capacity: 250 l / min
Max. Operating pressure: 10 bar
eff. Delivery: 165 l / min at 10bar and 1450 min-1
Drive power: 1.5 kW
Dimensions LxWxH in mm: 325x265x360
Weight: 15 kg
incl. intake air filter and fan protection
1 x
Hydraulic motor 16ccm
with WDR up to 25 bar dynamic pressure
250 bar max. Continuous pressure
Suction flow 24 l / min at 1500 rpm
1 x
Mounting kit hydraulic motor cpl.
without motor
1 x
500L-8213 1 set 10.00 43.00 38.70 1
Connection fitting, set, for engine
1 x
Instrument holder steel, galvanized
without fittings
Input GE18, output 1/2 "IG
2 x
Clamping jaw pair D33,7 ALU
1 x
Fine filter G 1 "
temperature resistant up to 200 °
without hose connections
1 x
Solenoid valve 0-10bar, 24V
G 1/4 ", normally open, directly controlled
1 x
Check valve 70 cpl. G1 IG
with VA valve insert, stroke 1mm
1 x
Safety valve G1 / 4, 11.0 bar
Incl. reduction
1 x
Gauge glycerine G 1/4 "U, 10 bar
0 - 10 bar, foot connection
1 x
Tube Fitting
Manometeranschlußverschraubung
1 x
Pressure switch MDR-F 10H-S
1 x
Pressure hose PTFE NW 16x750 mm
4 x
Machine foot with tear-off protection
128x78x30mm, NK45 °
1 x
Boiler 90ltr 11 bar
painted red, lying
Ø350, 1026mm long with feet
1 x
Set of fittings, screw connections
and fittings for the compressed air tanks
