603595

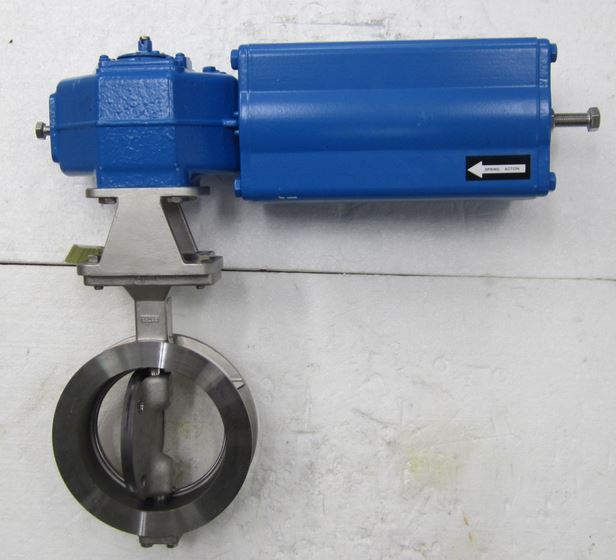

DISC VALVE L12A150AA with Pneumatic Actuator B1JAU10
603595

DISC VALVE L12A150AA with Pneumatic Actuator B1JAU10

Art.Nr.:
603595
nur auf Anfrage (Ausland abweichend)
Preise werden nur mit einem Kundenkonto angezeigt.

Auf den Merkzettel
Frage zum Produkt
Beschreibung
DISC VALVE L12A150AA with PNEUMATIC ACTUATOR B1JAU10
NELDISC® HIGH PERFORMANCE TRIPLE ECCENTRIC DISC VALVE, series L12
L12 - Wafer type, full bore, metal-seated Face-to-face lenqht acc. to API 609
A - Pressure Rating Body: PN 25 / ASME 150 | Maximum shut-off pressure: Ps = 25
bar, welded clamp ring
150 - Nominal Diameter: 150 mm
A - Material: Body and disc: stainless steel ASTM A351 gr CF8M / shaft: SIS 2324
A - Seat Material: Stainless steel ASTM B 424 (Incoloy 825) hard chrome plated
Body lenght: 56 mm / 2,20 in
PNEUMATIC CYLINDER ACTUATOR
B1 - Series B1
J - Single acting / Spring return
AU - Normally Open / failure position = open
10 - size
