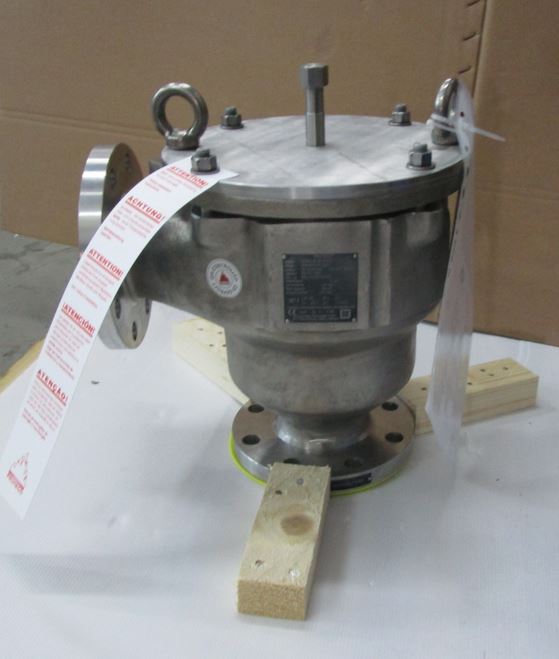

Detonation tube fuse-for stable detonations-PROTEGO® DR / ES-V-80-IIB3-P1,4-X3
- with check valve -
Setting pressure: + 45.0 mbar
Flow rate at design pressure: 350.0 m³ / h
Design pressure: + 63.0 mbar
Protection system with
Examination certificate
after page: DR_ES_V_KA_4_D.pdf
Flange connections: DN 80
drilled according to DIN EN 1092-1, PN 16
Form B1
Conformity with: ATEX Directive
housing assembly
Housing: 1.4408
Lid: 1.4571
Bumper: 1.4408
O-ring: PTFE
Bolts / nuts: A4
PROTEGO® flame arrester
FLAME FILTER® Cage: 1.4408
FLAME FILTER® Set - 3fold: 1.4571
FLAME FILTER® gap width: 0.5 mm
Liner: 1.4571
Bolts / Nuts: A4
Overpressure valve disc
Valve cover: 316 SS / 1.4571
Valve disc: 316 SS / 1.4571
Sealing: metallic
Spindle guide: 316 SS / 1.4571
Hex nut: A4
Weight: 2.3030
Type examination certificate no .: IBExU02ATEX2045X
Explosion group: IIB3
Standard gap width:> = 0.65 mm
Max. Perm. Operating temperature: 200 ° C
Max. Permissible operating pressure: 1.4 bar abs.
