602476

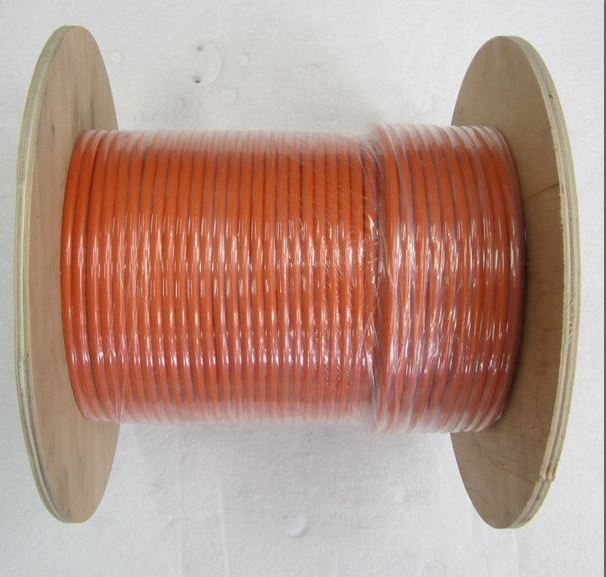

77 meters of copper cable 4.0 - Cu with cable lug ring, orange
602476

77 meters of copper cable 4.0 - Cu with cable lug ring, orange

Art.Nr.:
602476
3 Wochen (Ausland abweichend)
Preise werden nur mit einem Kundenkonto angezeigt.

Auf den Merkzettel
Frage zum Produkt
Beschreibung
77 meters copper cable 4.0 - Cu with cable lance, orange
One side with soldered cable guarding 4-8 mm and other side stripped 25 mm +/- 1 mm (soldered)
Conductor: tin-plated, copper according to BS4109 C101 O
Cross section: 4 mm²
Strands: 128 / 0.20 mm
Wire ø approx. 3.0 mm
Outside ø about 5.20 mm (+/- 0.10 mm)
Working temperature: - 60 ° C to 135 ° C
Volt: max. 600V ms
Max. Current: 35 amp
Max. Resistance: 4.2 milliohm / meter
Cable jacket: color orange
Resistant to oils, acids, alkaline liquids
Max. Tensile load: cable 105 kg (in connection with grounding tongs and drum max 50 kg - test load 60 kg)
