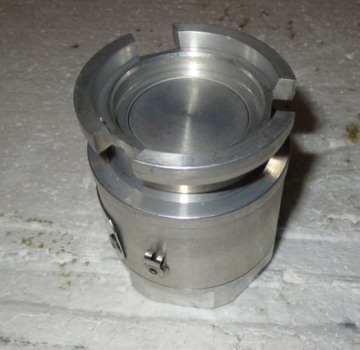

056-1" Industrial Dry Coupling Coupling Fixed Part AL/V
Coupling diameter 56 mm
Connection: BSP 1" female thread
Temperature range: -20 to +60°C
Max. operating pressure 16 bar
Max. coupling pressure 7 bar
Material: Aluminum / Viton
Product name: DDC-V 25-1" Al/Vi
Type: Male part (Part V) of a dry coupling
Nominal diameter: DN 25 (25 mm)
Connection thread: 1" external thread (1" BSPP)
Housing material: Aluminum (Al)
Seal material: Viton® (FKM)
Function: Leak-free connection thanks to an automatic closing and opening valve during connection and disconnection
Standard: NATO standard STANAG 3756
Compatibility: Compatible with all female parts (Part M) according to STANAG 3756 in DN 25
Area of ??application: Fuels, mineral oils, chemically resistant liquids
Application: Ideal for leak-free loading and unloading of tank trucks, railway wagons, and mobile tanks
Special feature: Can be used as a connector for ZVA25 fuel nozzles
You only see prices with a customer account.
Shippingtime:

ca. 3-4 days
